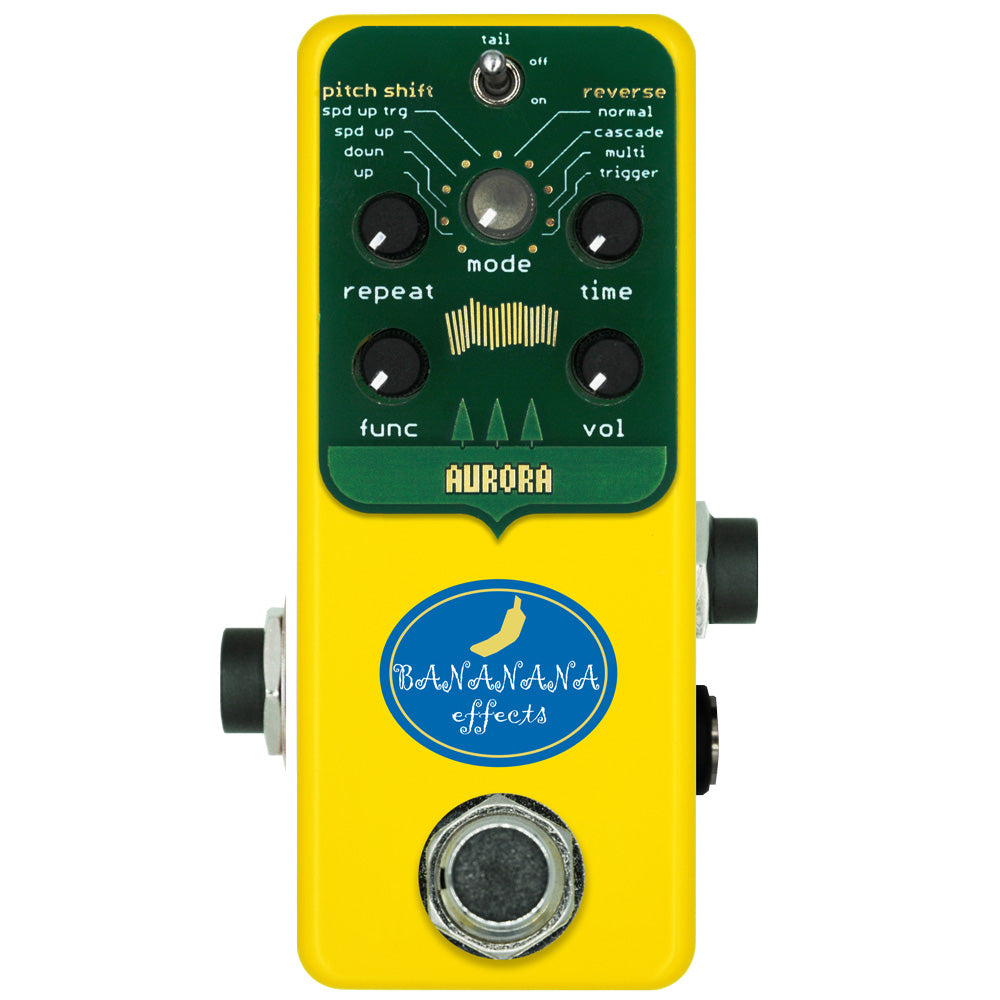

A delay pedal with eight modes, allowing flexible control over pitch, speed, and playback direction.
With features such as chromatic pitch shift delay, delay at 2x and 4x speed, reverse delay at ½x, 1x and 2x speed, and 2x speed trigger delay that automatically samples and loops your previous phrase when triggered by a break in the input sound, this delay pedal will enable you to create experimental and radical sounds.
-
DIMENSION (WxDxH)52 x 93 x 49mm2 x 3.7 x 1.9 inches
-
WEIGHT200g7.1oz
-
BYPASSBUFFERED BYPASS
-
INPUT IMPEDANCE1MΩ
-
POWER SOURCE9V DC(Center Minus)
-
CURRENT DRAW60mA
-
Pitch Up
This delay increases the pitch on each repeat.
-
Pitch Down
This delay decreases the pitch on each repeat.
The pitch shift can be set chromatically between -1 to -12.
Each time the pitch setting changes, the “Mode” knob flashes green.
(It flashes white at the fifth and octave intervals only).
-
Speed Up
A delay that replays sampled sound at a multiple of the original speed.
Playback speed can be selected from 2x and 4x.
With the time set to 0, it can also be used like a pitch shifter.
-
Speed Up Trigger
Automatically samples and loops the previous phrase when triggered by a break in the input sound.
Playback speed can be selected from 2x and 4x.
-
Reverse
A delay that plays back a sampled sound in reverse.
Playback speed can be selected from ½x 1x and 2x.
-
Cascade Reverse
A delay that reverses the playback direction of the sampled sound each time it feeds back into the pedal.
Playback speed can be selected from ½x 1x and 2x.
-
Multi Reverse
A delay that plays back a sampled sound in reverse.
The sample is played back at 1/2x, 1x and 2x speed simultaneously.
The balance of 1/2x & 2x sampled sound can be controlled using the “Func” knob.
-
Reverse Trigger
Automatically samples and loops the previous phrase in reverse when triggered by a break in the input sound.
Playback speed can be selected from ½x 1x and 2x.
Selects keeping the tail when the pedal is bypassed or not.
-
Pitch Up
-
Pitch Down
-
Speed Up
-
Speed Up Trigger
-
Normal Reverse
-
Cascade Reverse
-
Multi Reverse
-
Reverse Trigger
-
Repeat
Controls the delay repeats.
(Not used when Speed Up Trigger Mode & Reverse Trigger Mode are selected.)
-
TimeSets the delay time.
-
FuncAdjust the parameters of each modes
-
Pitch Up / DownPitch(Chromatic)
-
Speed Up / Speed Up TriggerPlaying Speed(x2, x4)
-
Reverse / Cascade Reverse / Reverse TriggerPlaying Speed(x-1/2, x-1, x-2)
-
Reverse MultiBalance(ccw: Emphasize the x-½ tone / cw: Emphasize the x-2 tone)
-
VolLevel control for the dry signal.
-
Foot Switch
By press & hold foot switch < 2sec then release, you can toggle dry through or cut.
(blink red = dry through / blink green = dry cut)
-
Cascade Reverse 2x
-
Spd Up Trigger 2x
-
Pitch Down
-
Spd Up 4x
-
Pitch Up 5th
-
Reverse 2x
-
Multi Reverse
-
Spd Up Trigger 4x
-
Spd Up 2x
-
Pitch Up
-
Multi Reverse
-
Reverse Trigger 2x
-
Cascade Reverse 2x
The pitch shift can be set chromatically between +1 to +12.
Each time the pitch setting changes, the “Mode” knob flashes green.
(It flashes white at the fifth and octave intervals only).
